Model: WZ001 Material:Silicone Custom service:Providing free design service&technical solutions Payment:T/T Lead time:7-15 days Port:Ningbo,China Shipping Methods:FedEx, DHL, EMS, UPS, TNT For other types of models, pls visit our website or contact us.
Product Introduction:

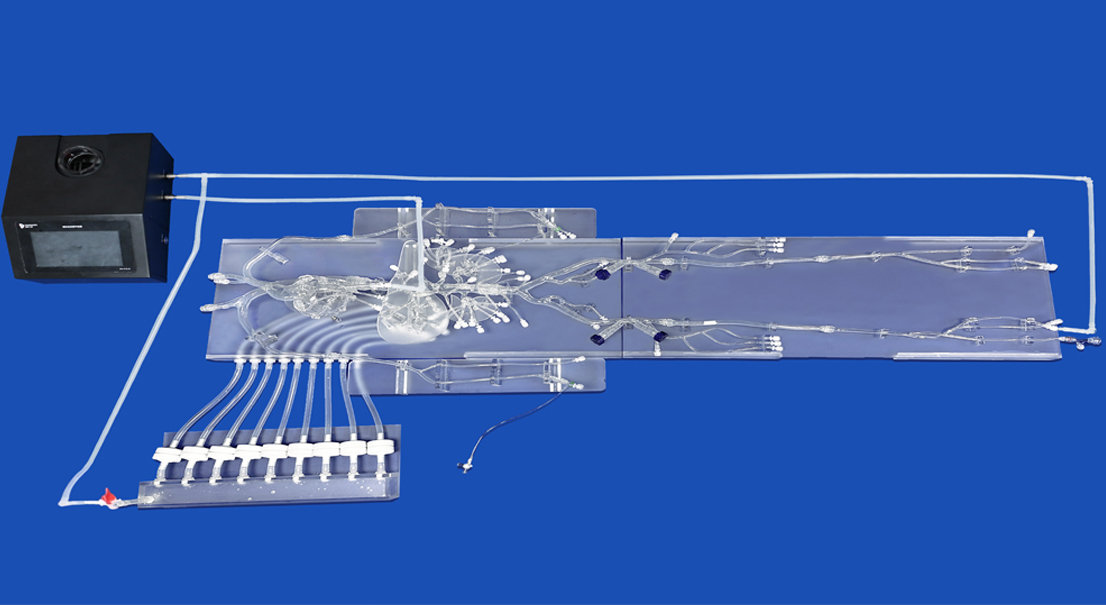

The model extends from the plantar artery to the aorta, it contains three different aneurysms on renal arteries, in addition, one embolism lesion is on the left femoral artery, and one calcification lesion is on the right superficial femoral artery. The devices can access into the model through both bilateral radial arteries and femoral artery for interventions. The model is fixed on an acrylic plate,through customized connector, the multiple detachable sections of the model can be customized and replaceable.
Product Usage:
1. Simulating training on intervention treatment procedures for renal artery aneurysm, operation for thrombectomy and calcification rotational atherectomy on lower extremity artery.
2. Simulating training on transfemoral antegrade & retrograde access for lower extremity intervention.
3. Simulating training and demonstrations for coronary and peripheral vascular interventions.
4. Applicable for development, testing, and validation of coronary & peripheral intervention devices.
Customization options:
1.Aortic arch: It can be replaced with Type II arch, Type III arch, and irregular arch.
2.Thoracic section: We can customize different lesions, such as stenosis, bifurcation, embolisms, calcification, CTO and other lesions;
3. Radial artery：It can be customized with simple or spatial structure, and different lesions, such as tortuosity, stenosis and other lesions can be added;
4. Abdominal artery: It can be customized with simple or spatial structure, and some common lesions such as aneurysms, stenosis, and embolisms can be added to corresponding vessel segment as required.
5. Iliac Artery: Some common lesions such as aneurysms, stenosis, and embolisms can be added.
6. Femoral Artery: Some common lesions such as aneurysms, stenosis, and embolisms can be added.
7. Calf artery: Some common lesions such as aneurysms, stenosis, and embolisms can be added.
8. We can customize model based on the data files provided in formats such as CT, CAD, STL, STP, STEP, etc.
