Product description:

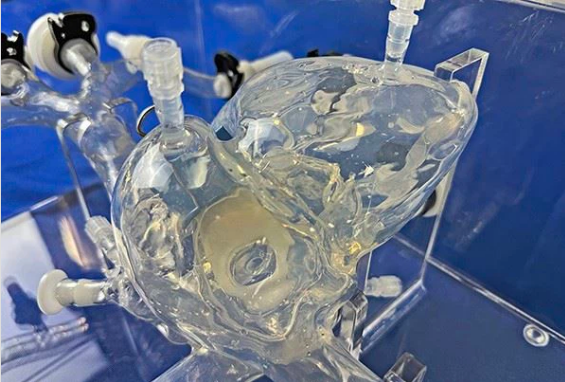

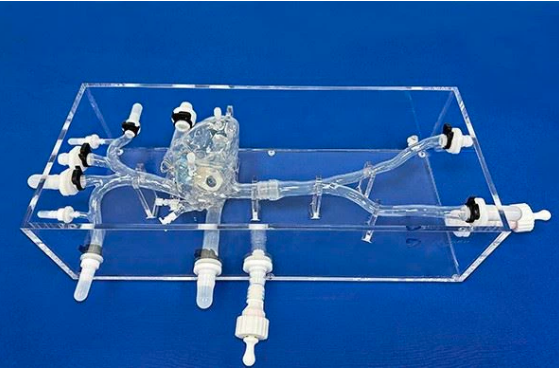

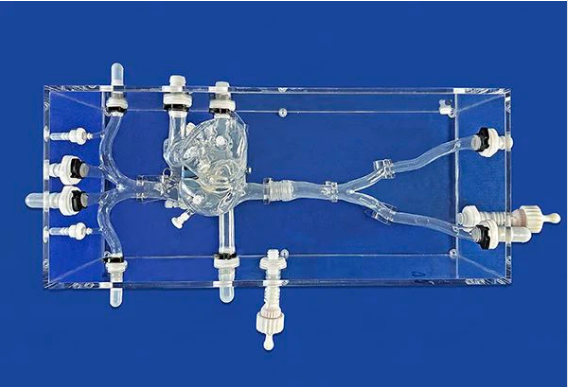

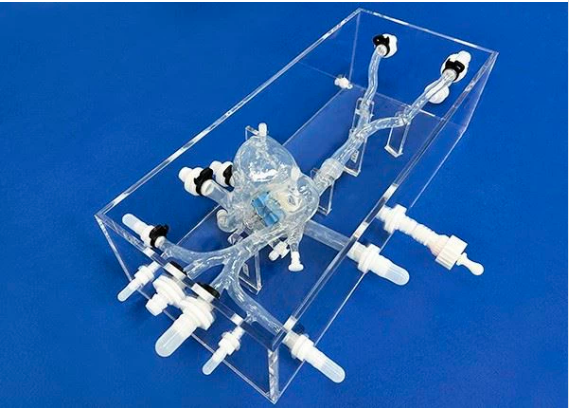

This model is a spatial vein vascular model primarily composed of the following parts: jugular vein, superior vena cava, left atrium, left ventricle, right atrium, right ventricle, inferior vena cava, external iliac vein, femoral vein, etc. It is fixed on a transparent acrylic tank, and the blood vessels are connected through transparent Pagoda joint. Each part can be replaced with corresponding pathological models and customized according to customer needs. The model can be accessed through the jugular vein and femoral vein, with an interventional instrument diameter ranging 0-36F. The atrial septum between the left atrium and right atrium can be replaced with different defects according to different requirements. The model is recommended for use with a portable pulsatile pump.

Product Applications:

1.Development, testing, and validation of cardiac and pulmonary vein interventional devices (such as guidewires, catheters, balloons, stents, etc.).

2.Quantitative analysis of blood flow using techniques such as CTA, DSA, MRA, OCT, PIV, and Doppler ultrasound.

Customization Options (Number, Location, and Size of Lesions can be Customized as per Requirements):

1. Additional vessels: Coronary veins, jugular veins, pulmonary arteries.

2. Additional Lesions and Corresponding Surgeries: Atrial septal defect closure, left atrial appendage occlusion, pulmonary vein embolization.

3. Femoral Vein: Aneurysm, stenosis, embolism.

4. Customization of Models based on data files provided in formats such as CT, CAD, STL, STP, STEP, etc.

Accessories: Customized portable aluminum case, sheath, hemostatic valve, portable water bag, and injector.
