Model: XX004D Material:Silicone Custom service:providing free design service&technical solutions Payment:T/T Lead time:7-15 days Port:Ningbo,China Shipping Methods:FedEx, DHL, EMS, UPS, TNT For other types of models, pls visit our website or contact us.
Product Description:
Thismodel extends from the radial artery and femoral artery to the branches of the coronary arteries. It includes an optimized radial artery, aortic arch, left and right coronary arteries, diagonal branch, left anterior descending branch(LAD), circumflex branch, abdominal aorta and femoral artery, etc. The left and right coronary arteries are supported on a transparent rigid heart, which create more sense of space for coronary arteries. Presently the left and right coronary arteries of our regular PCI model are healthy without any lesions,for the purpose of catering to diverse customization requirements, the following custom options for this model are available:
1.The model can be customized with interchangeable small vascular segments of common lesions in different branches of coronary artery, those Common lesions include stenosis, bifurcation, calcification, and CTO. Through customized transparent connectors, those small vascular segments with lesions can be replaced, in addition, and the whole left or right coronary artery can be replaced as well.
2. regarding which arteries can be customized with replaceable stenosis lesion with different rate, we recommend to consider LAD, LCX and mid-segment of the right coronary artery.
Product Usage:
1.Simulating some common coronary lesions, such as stenosis, calcification, bifurcation, CTO, coronary artery embolism, etc and PCI procedures.
2. Applicable for the development, testing, and validation of various coronary intervention devices including catheters, guidewires, microcatheters, micro guidewires, stents, balloons, etc.
3. Applicable for demonstrations, training, and marketing of various coronary intervention devices.

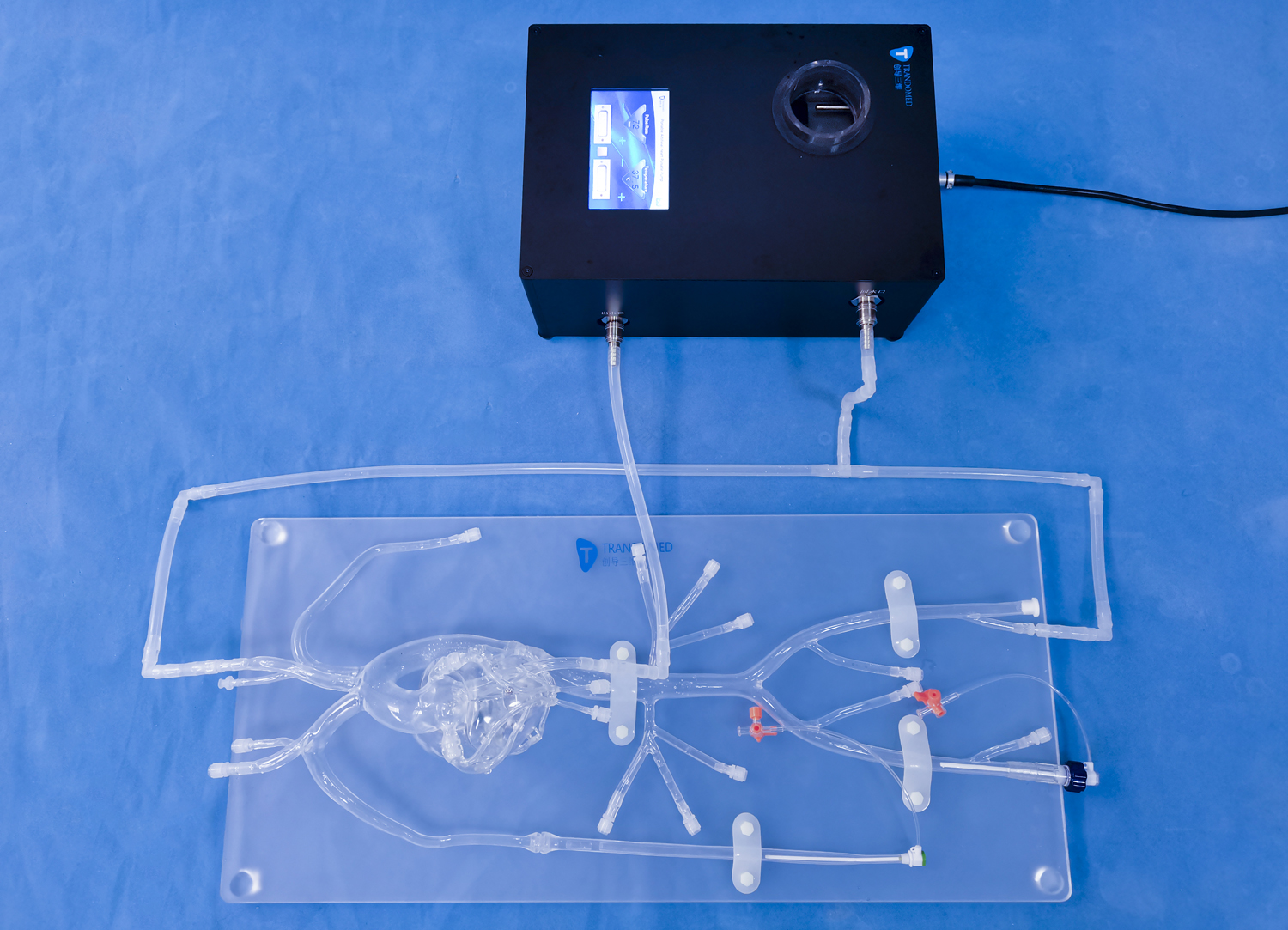

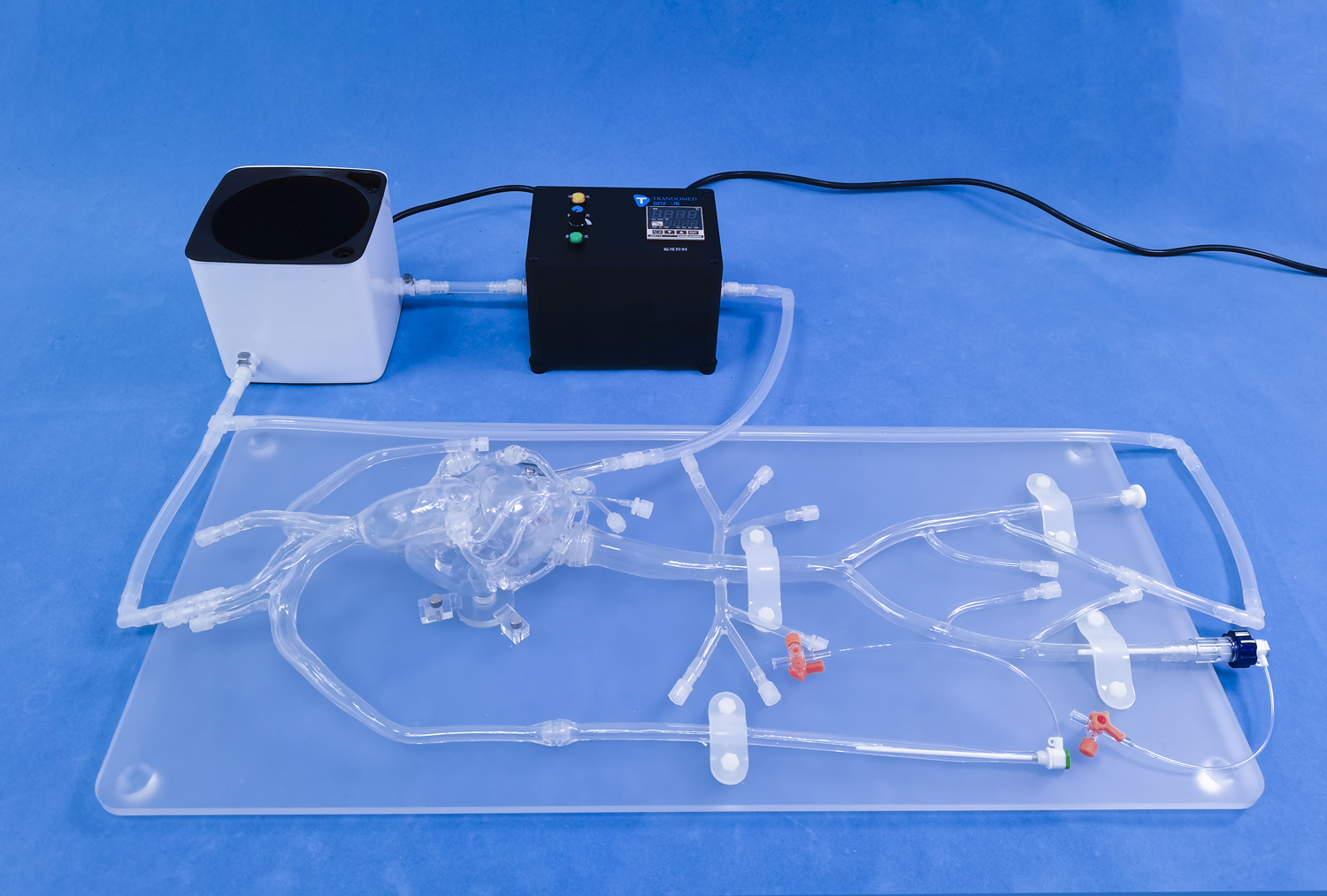

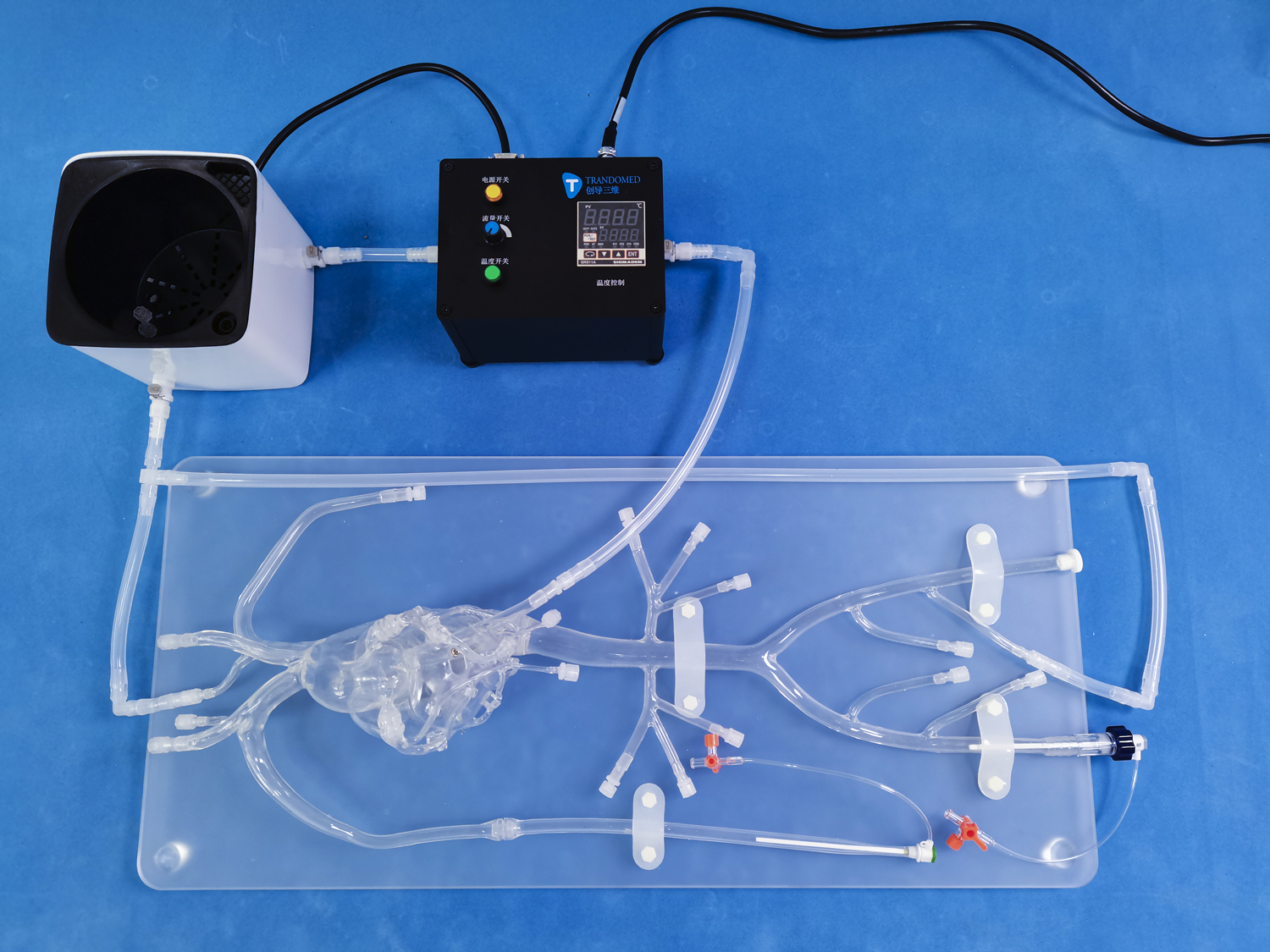

The images shown below are three customized models.
